PK 53002 SH

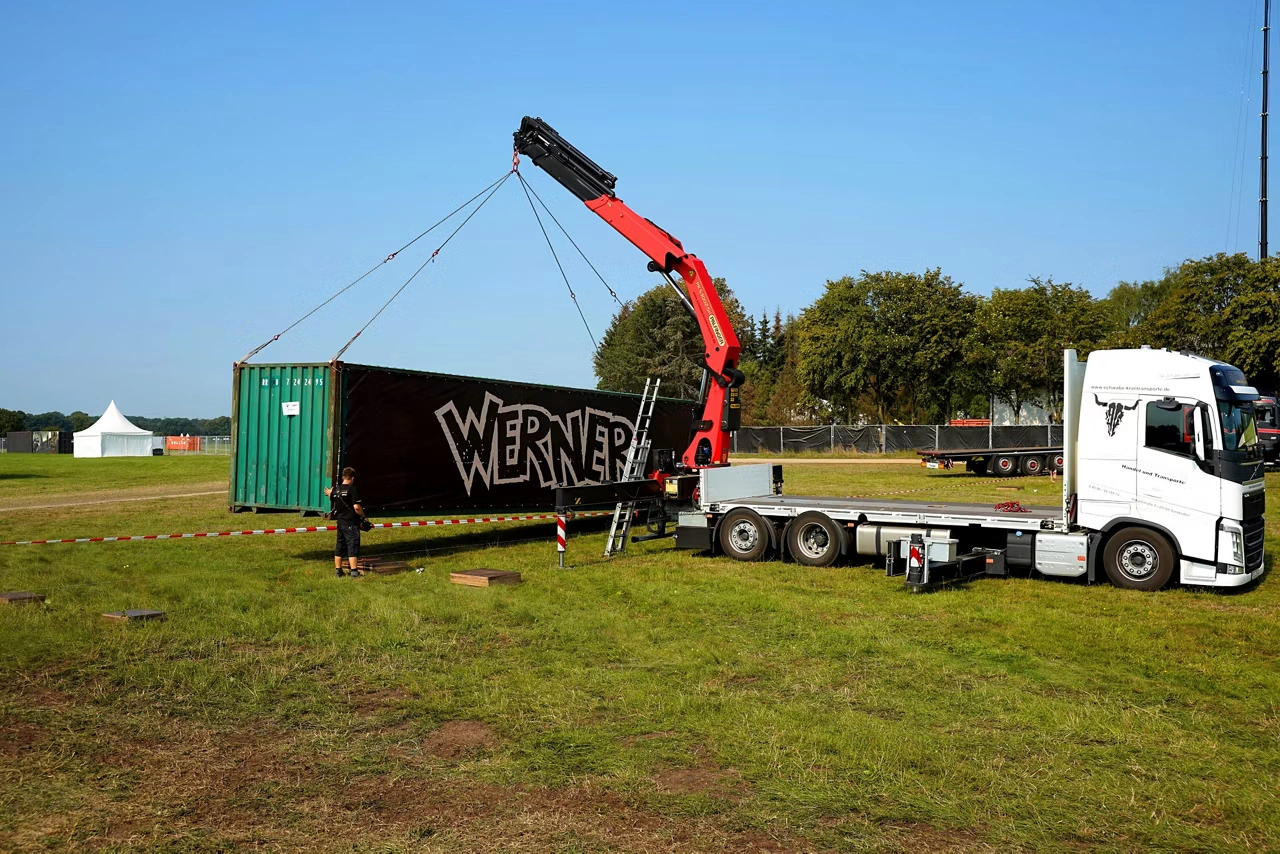

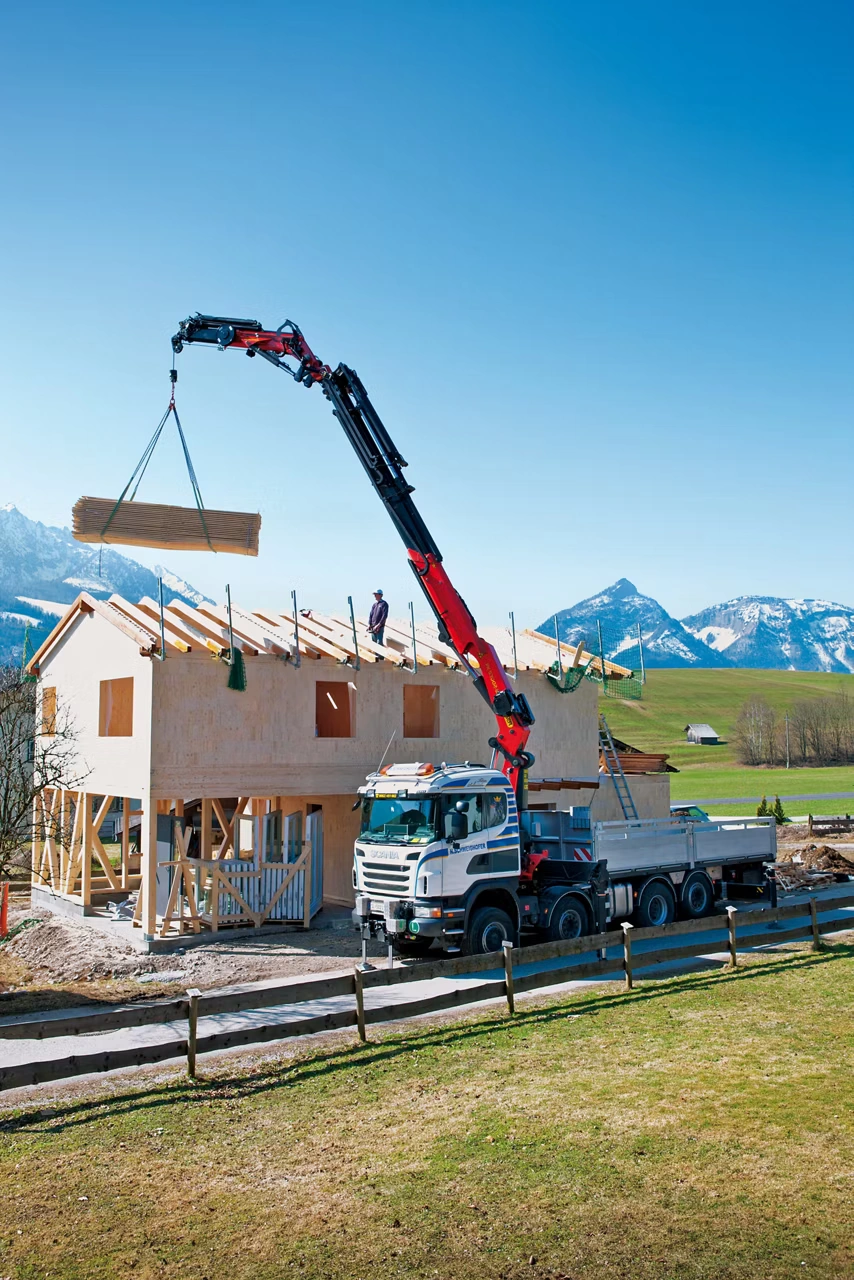

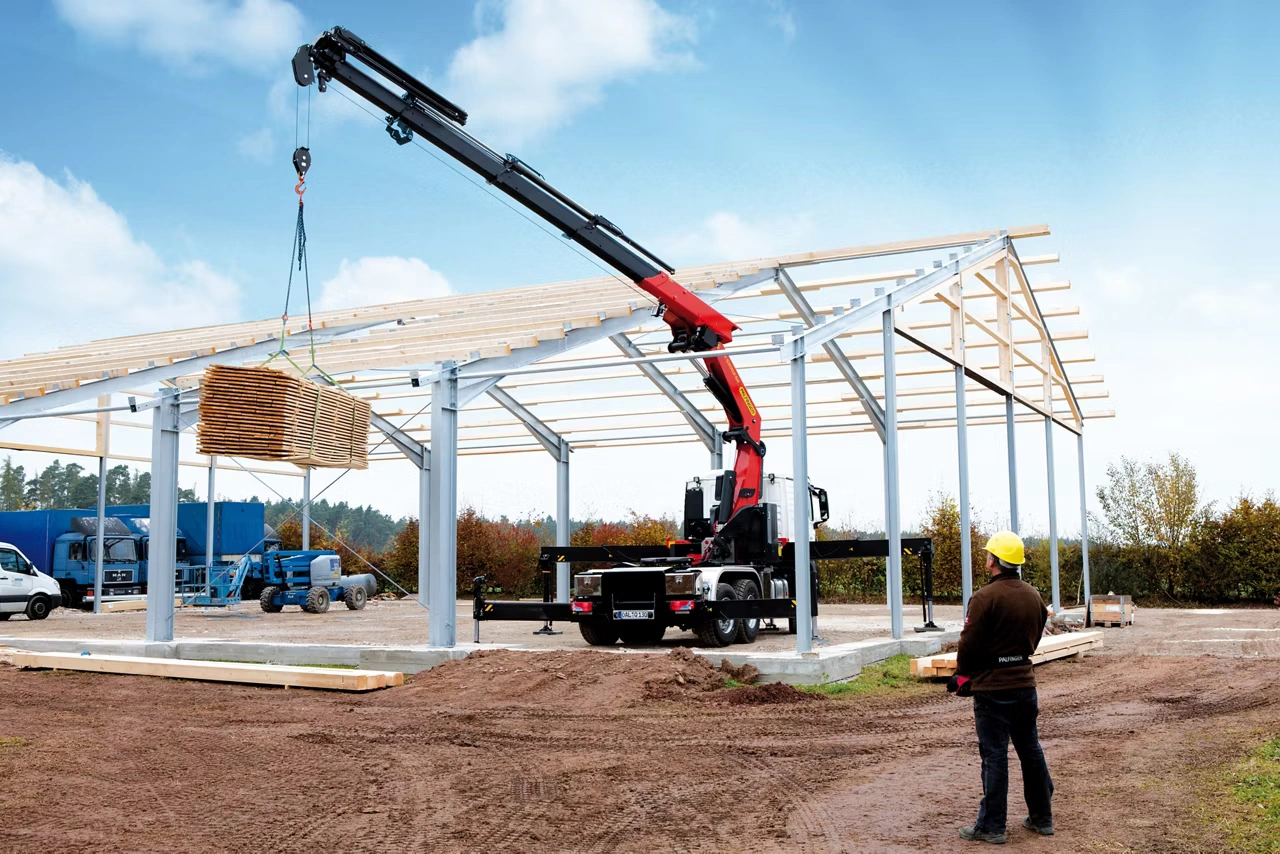

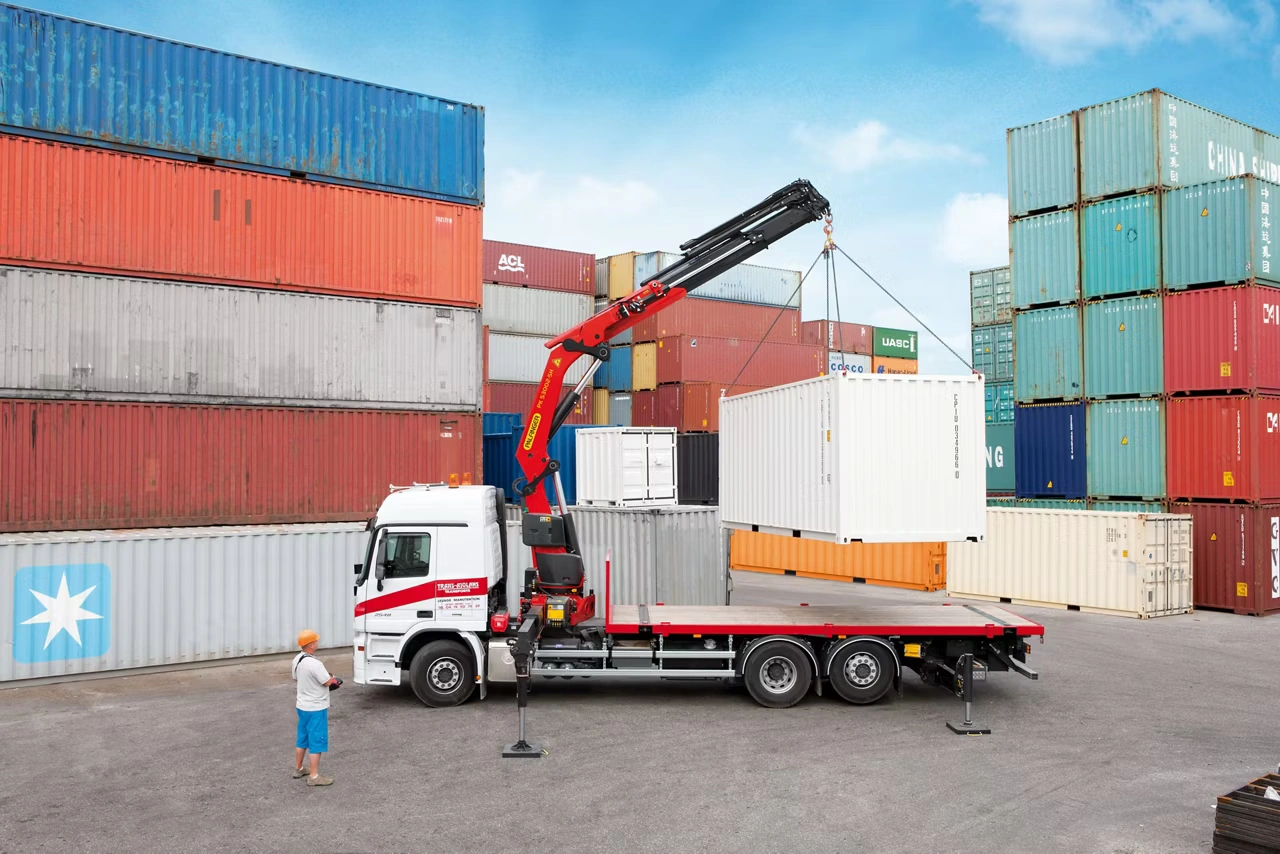

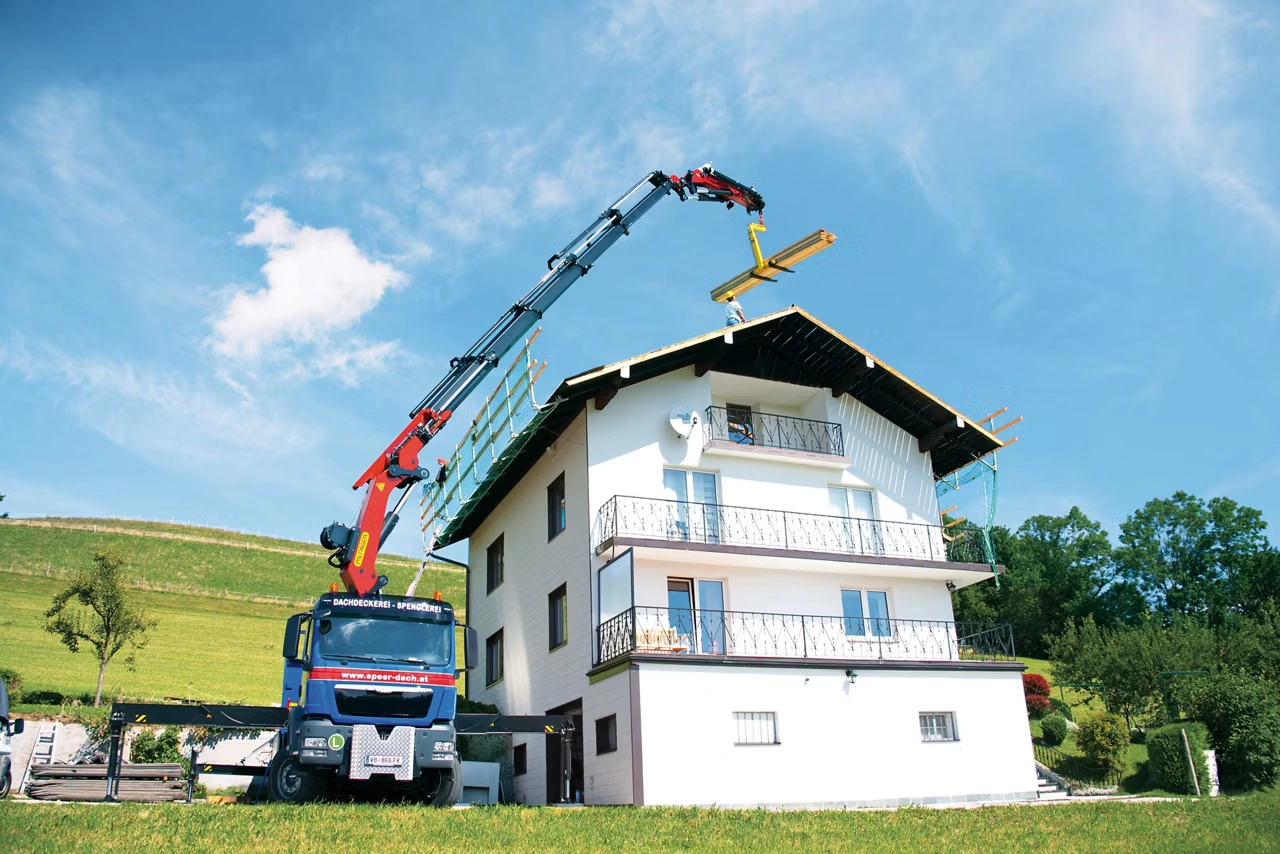

Heavy Loader Crane PK 53002 SH

Icon

The SH High Performance range is designed for maximum power, endurance, and precise control. The PK 53002 SH combines reliable strength with smooth and stable operation in heavy-duty industrial lifting applications. The S-HPLS system accurately balances power and speed, allowing heavy containers to be lifted and positioned with ease.

High Power Combined with Precise Control

Advanced engineering solutions used in these cranes combine outstanding strength with precise control to achieve high overall performance. Modern hydraulic systems ensure smooth and stable lifting, guaranteeing efficient and confident operation across the entire working range.

Performance Backed by Dynamic Stability

The SH range delivers consistent lifting power and precision in all conditions. By harmoniously combining strength and stability, these reliable cranes provide optimal load control and allow even the most demanding tasks to be performed with ease.

Standard Features

  • Radio Remote Control – full control
  • POWER LINK PLUS – maximum flexibility
  • PALTRONIC – intelligent crane control
  • Unlimited Rotation – unlimited rotation for maximum flexibility
  • High Speed Extension – faster operating cycles
  • HPSC – smart stability, extended reach
  • Low-Maintenance Extension System – minimal maintenance extension system

Specifications of modifications on Heavy Loader Crane PK 53002 SH

  • Max. lifting moment

    50.1 mt
  • Max. lifting capacity

    18,200 kg
  • Max. hydraulic outreach

    21 m
  • Max. outreach (with fly jib)

    32.5 m
  • Slewing angle

  • Slewing torque with 1 gear

    4 mt
  • Slewing torque with 2 gears

    5.5 mt
  • Stabilizer spread (std)

    7.8 m
  • Width folded

    2.51 m
  • Max. operating pressure

    365 bar
  • Pump capacity

    90 - 120 l/min
  • Dead weight (std)

    4,155 kg
