PK 12502 SH

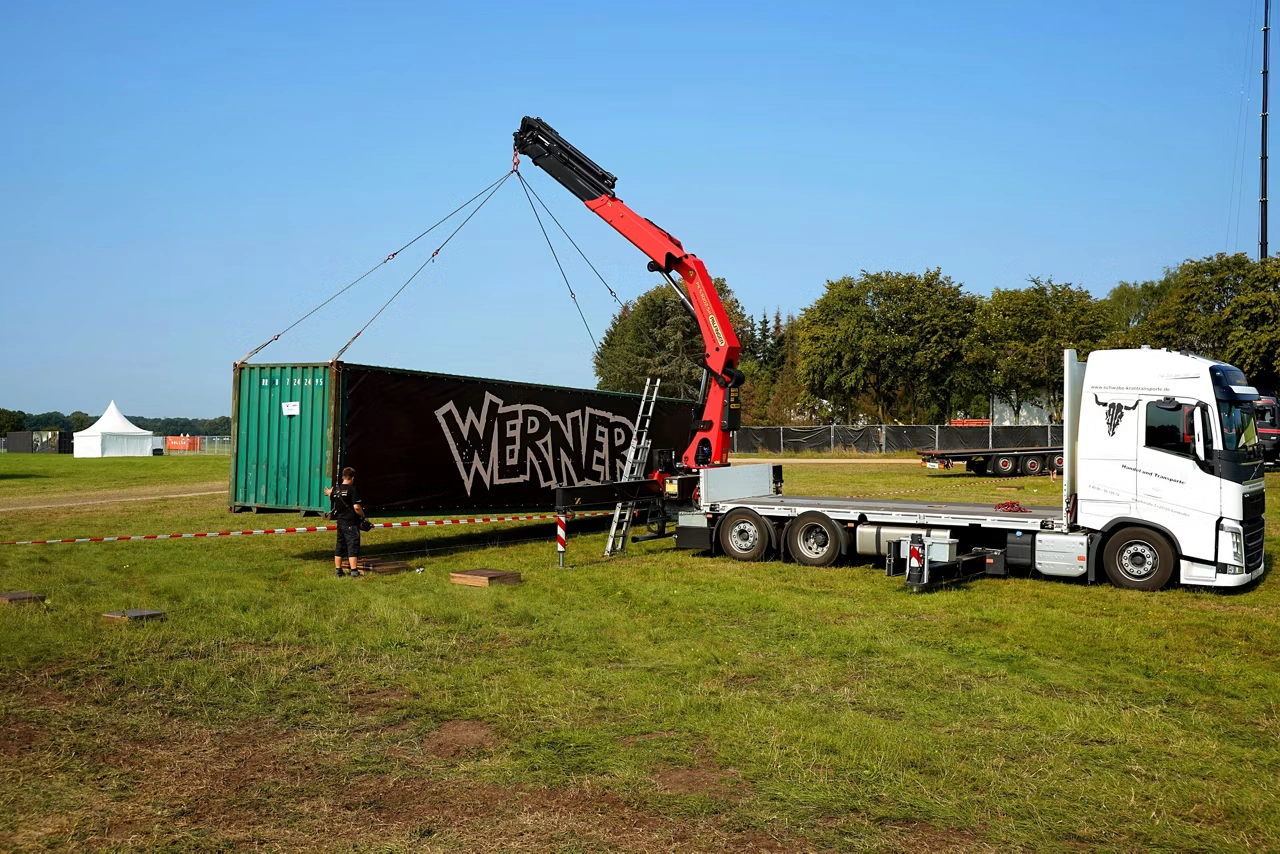

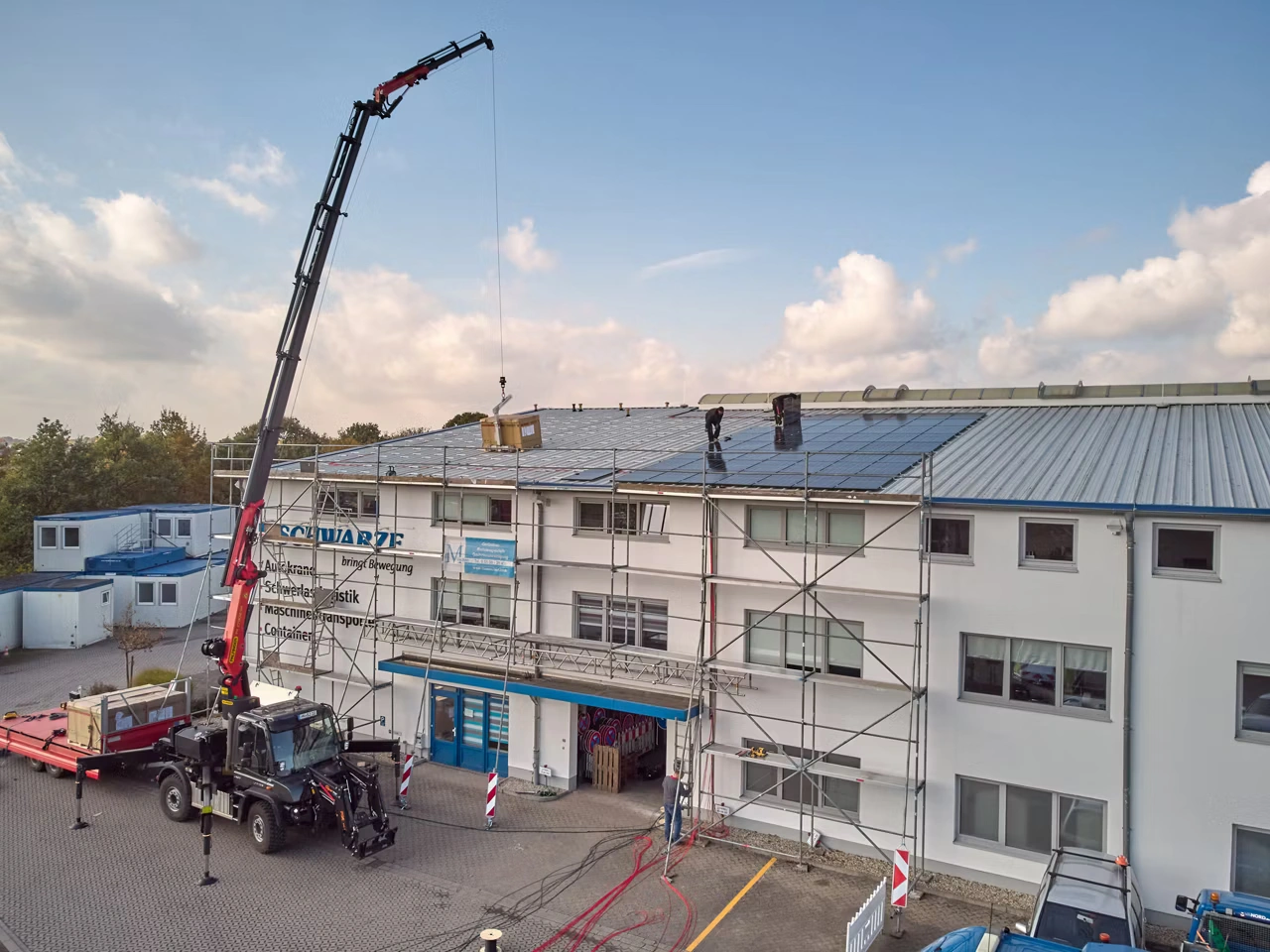

Medium Loader Crane PK 12502 SH
The SH High Performance range is designed for maximum power, endurance, and precise control. The versatile PK 12502 SH ensures smooth and stable operation during continuous use in various conditions. The S-HPLS system automatically adjusts performance by providing additional lifting power when required — ensuring stable yet efficient lifting for everyday construction work.
Performance supported by dynamic stability
The SH range delivers consistent lifting power and precise performance in any conditions. By combining strength and stability, these reliable cranes provide optimized load control, allowing even demanding tasks to be carried out with ease.
Superior strength combined with precise control
The advanced engineering behind these cranes combines impressive power with precise control for outstanding overall performance. Their modern hydraulic systems ensure smooth and steady lifting, enabling efficient and confident operation across the entire working range.
Standard Features
- High Speed Extension – Faster cycles
- HPLS – On-demand extra power
- Low-Maintenance Extension System – Low-maintenance extension system
- PALcom P7 – All-day operator comfort
- PALTRONIC – Smart crane control
- POWER LINK PLUS – Maximum flexibility
- Radio Remote Control – Full control
Specifications of modifications on Medium Loader Crane PK 12502 SH
-
Max. lifting moment
11.4 mt -
Max. hydraulic outreach
14.1 m -
Max. manual outreach
16.1 m -
Slewing angle
400° -
Slewing torque
1.3 mt -
Stabilizer spread (std)
3.2 m -
Fitting space required (std)
0.7 m -
Width folded
2.38 m -
Max. operating pressure
365 bar -
Pump capacity
45 - 60 l/min -
Dead weight (std)
1,160 kg
