P 240 AXE-E Smart Plus
Auto hydraulic lift P 240 AXE-E Smart Plus

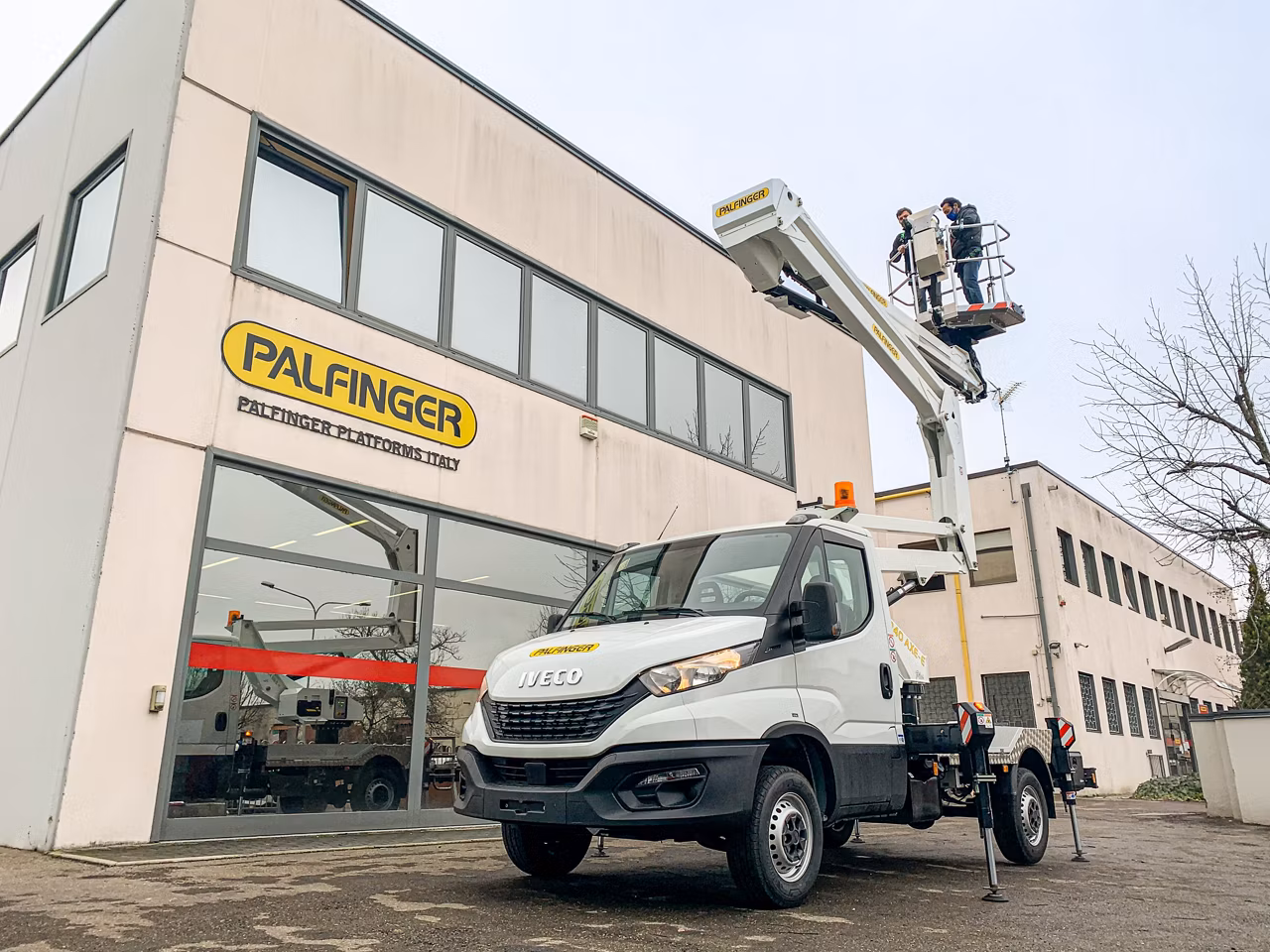

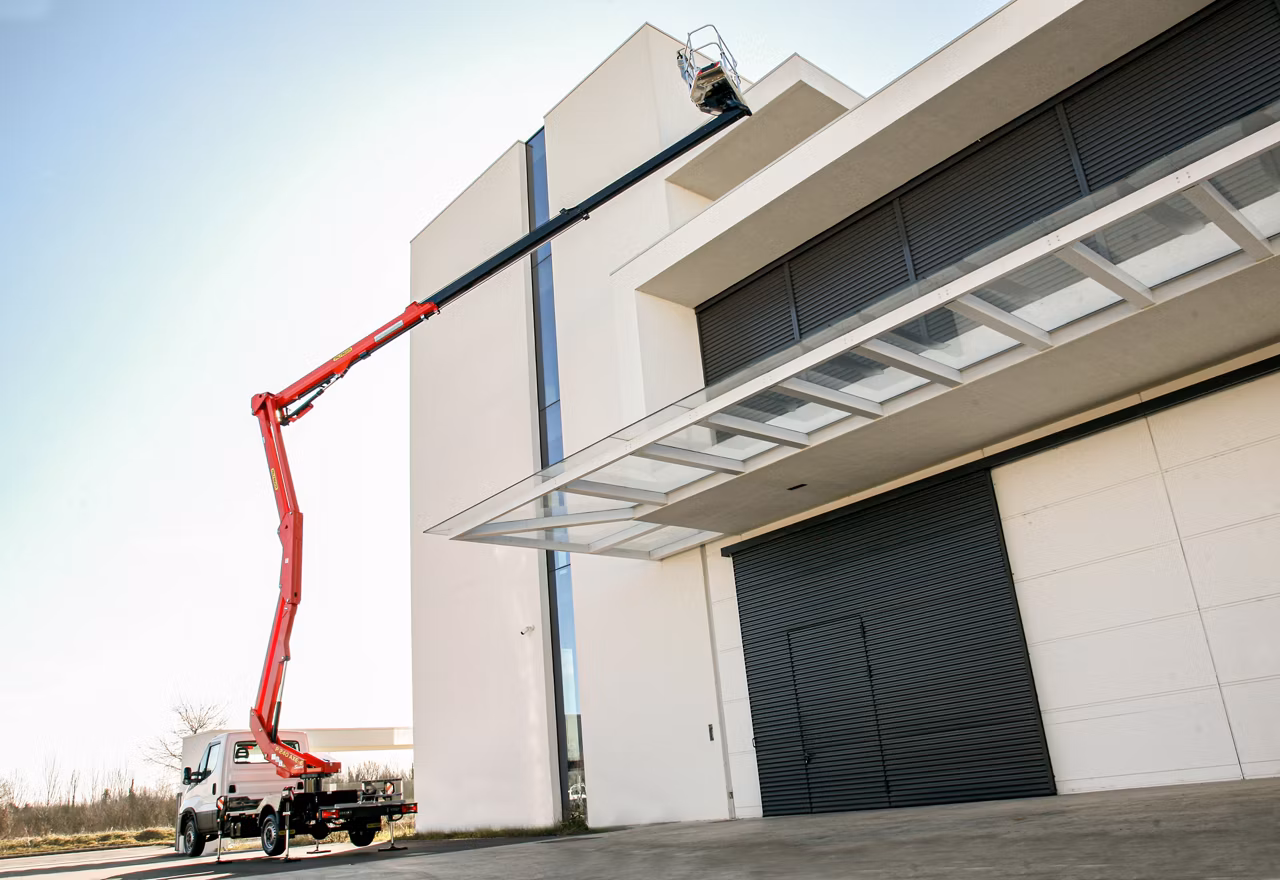

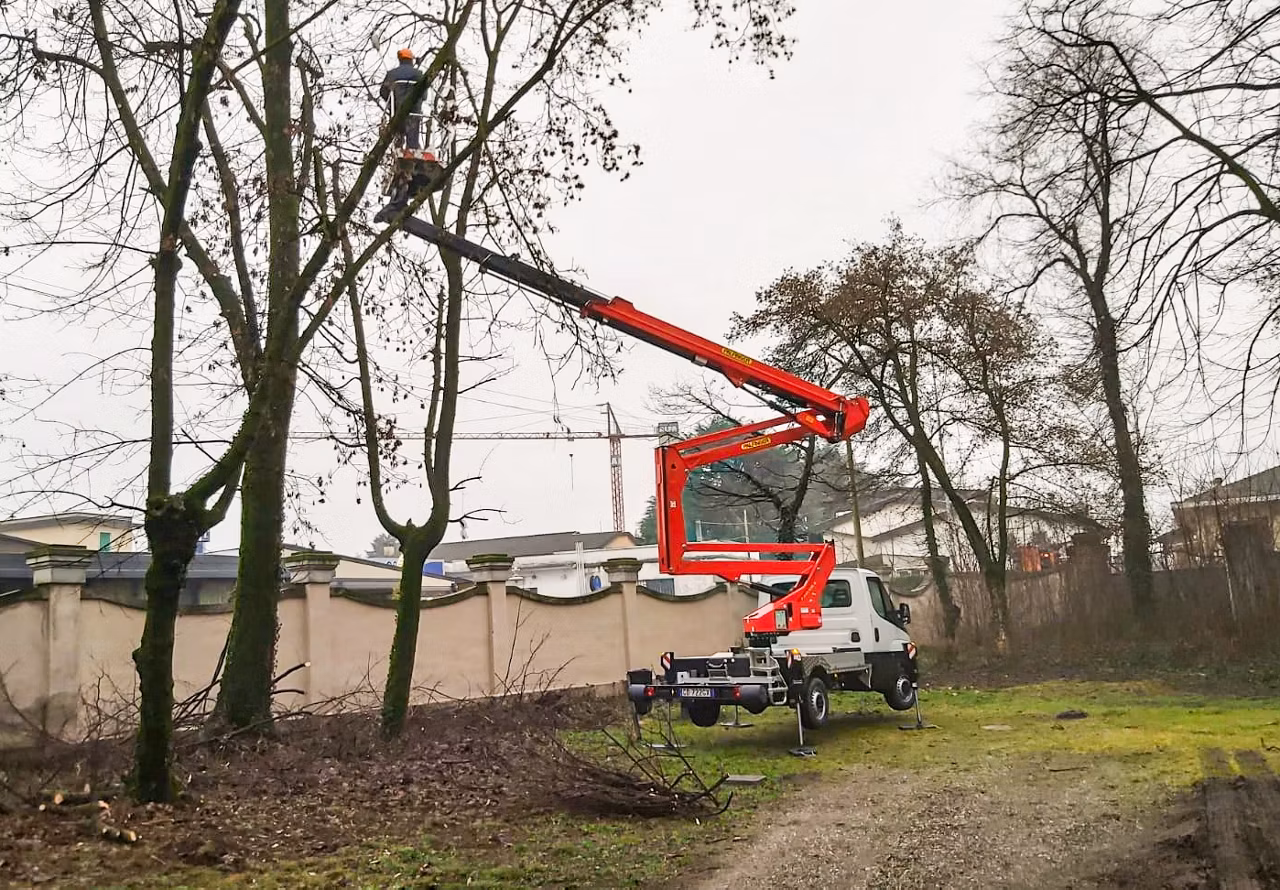

The PALFINGER P 240 AXE-E Smart Plus is a double-articulated aerial work platform in the 21–29 m category, mounted on a 3.5 t chassis. The twin-articulation boom delivers exceptional agility in confined spaces, while automatic three-mode stabilization enables fast setup in varied working conditions. Electric multifunction controls ensure smooth and precise maneuvering, and a 28-inch color display in the basket improves operator visibility and safety at height. The standard Connected module enables remote diagnostics and fleet management. Chassis: Iveco Daily (3.5 t), further chassis on request. Working height: 22.9 m, side reach: 11.6 m, basket load: 250 kg, turntable rotation: 370°, basket rotation: 90°+90°, transport height: 2.93 m.
One Button Folding
- Fold the aerial work platform quickly and easily with the PALFINGER Home function
Perfect Protection
- The KTL coating provides optimal, long-lasting surface protection with excellent corrosion resistance for the whole life of a platform, maintaining performance and helping to retain value
Specifications of modifications for Auto hydraulic lift P 240 AXE-E Smart Plus
-
Working Height
22.9 m -
Basket Load
250 kg -
Side Reach
11.6 -
Slewing range of basket
90° + 90° -
Max. basket load
250 kg -
Workman basket - breadth / length / height
1.4 x 0.84 x 1.1 -
Angle of main boom
-25° a + 80° -
Rotation angle of turntable
370° -
Height in transport position
2.93 m -
Width in transport position
2.19 m -
Length in transport position
0 m
