P 200 TXE-E Smart Plus
Auto hydraulic lift Palfinger P 200 TXE-E Smart Plus

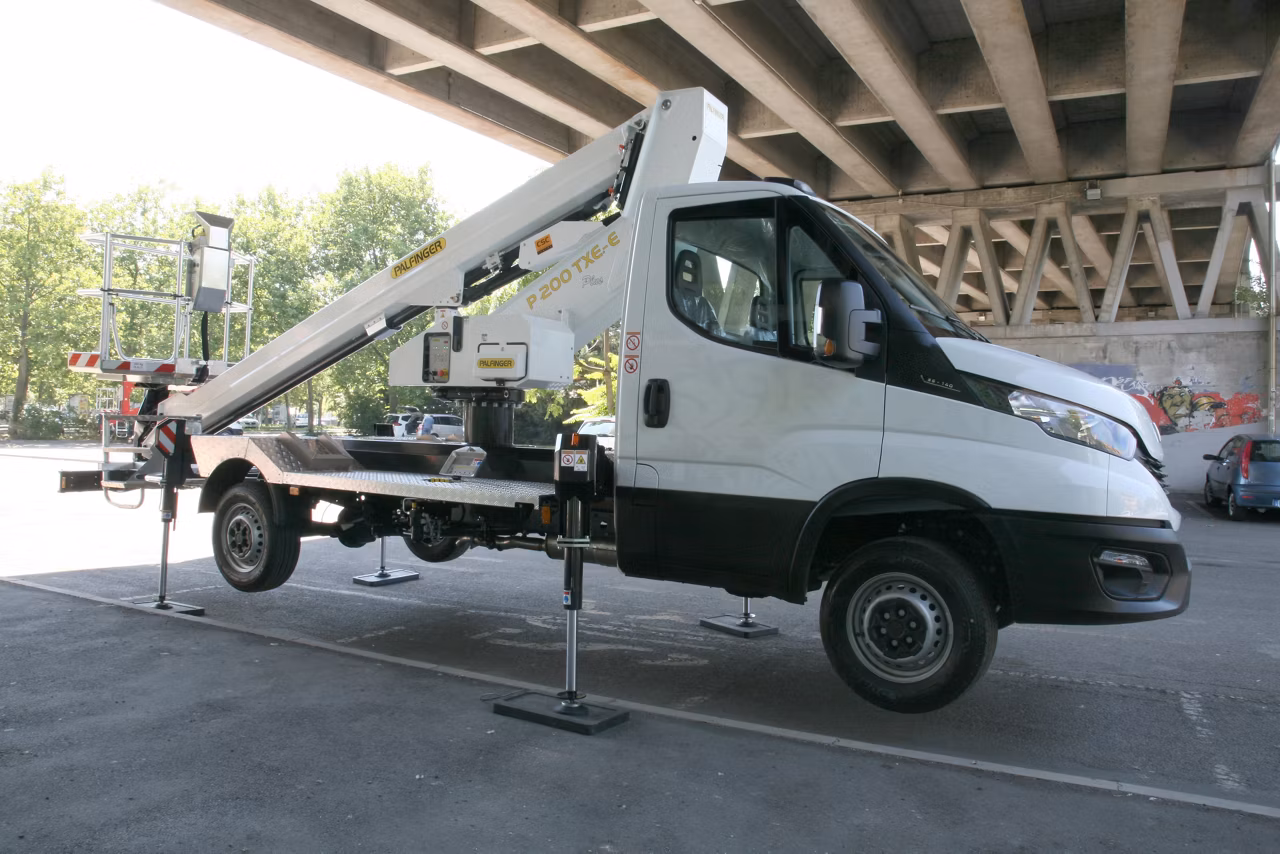

The PALFINGER P 200 TXE-E Smart Plus is a telescopic aerial work platform in the 10–20 m category, mounted on a 3.5 t chassis, with three stabilization modes. The compact mode keeps operation within the vehicle’s footprint for tight spaces; the extended front crossmember mode delivers maximum elevated performance; and the partial stabilization mode provides maximum reach with a minimal footprint. A vertical stabilization function adapts the platform to uneven ground. Electric multifunction controls ensure smooth and precise maneuvering. The standard Connected module enables remote diagnostics and fleet management. Chassis: Iveco Daily (3.5 t), further chassis on request. Working height: 20 m, side reach: 10.8 m, basket load: 250 kg, turntable rotation: 370°, basket rotation: 2×90°, transport height: 2.87 m.
One Button Folding
- Fold the aerial work platform quickly and easily with the PALFINGER Home function
Perfect Protection
- The KTL coating provides optimal, long-lasting surface protection with excellent corrosion resistance for the whole life of a platform, maintaining performance and helping to retain value
Specifications of modifications for Auto hydraulic lift Palfinger P 200 TXE-E Smart Plus
-
Working Height
20 m -
Basket Load
250 kg -
Side Reach
10.8 -
Slewing range of basket
2 x 90° -
Max. basket load
250 kg -
Workman basket - breadth / length / height
1.4 x 0.85 x 1.1 -
Angle of main boom
-25° to + 80° -
Rotation angle of turntable
370° -
Height in transport position
2.87 m -
Width in transport position
2.19 m -
Length in transport position
7.1 m
