P 240 A-E
Auto hydraulic lift Palfinger P 240 A-E

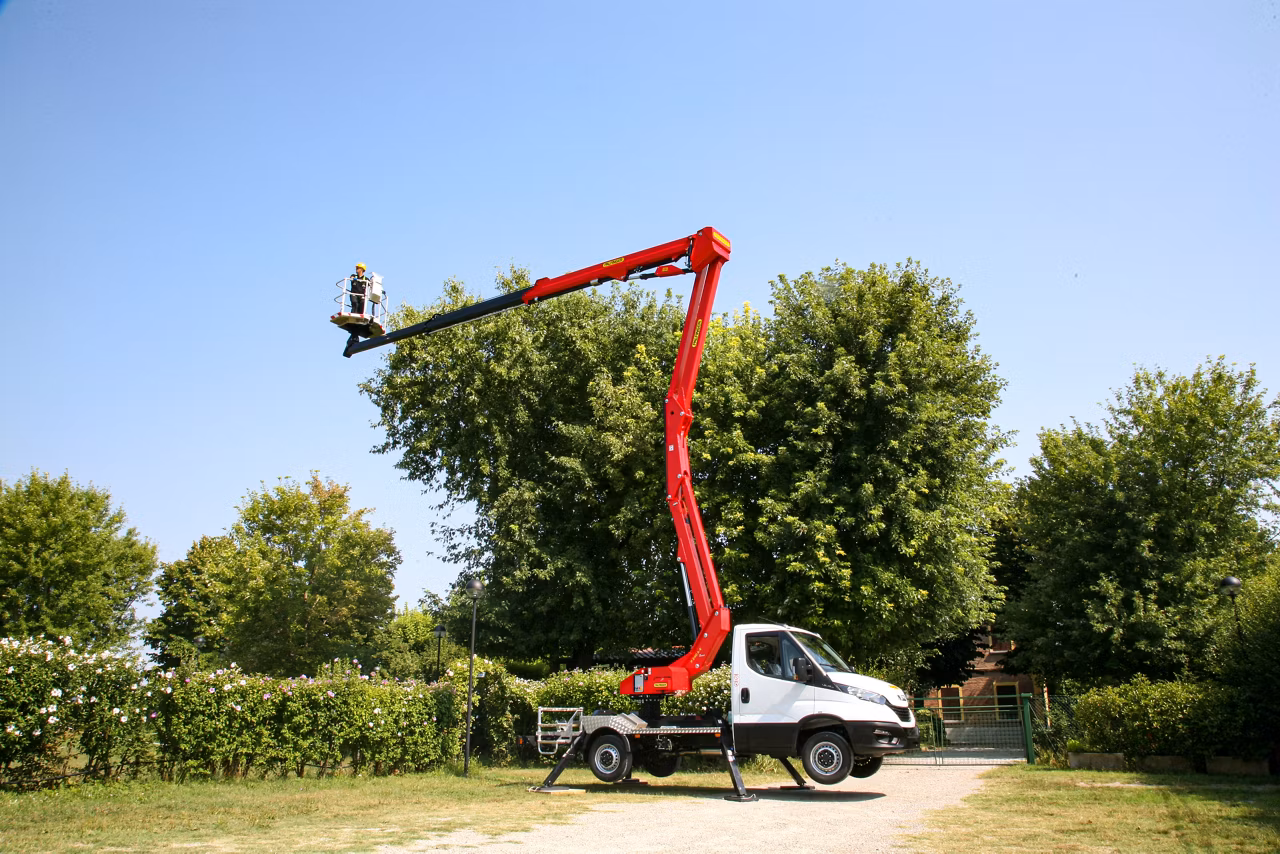

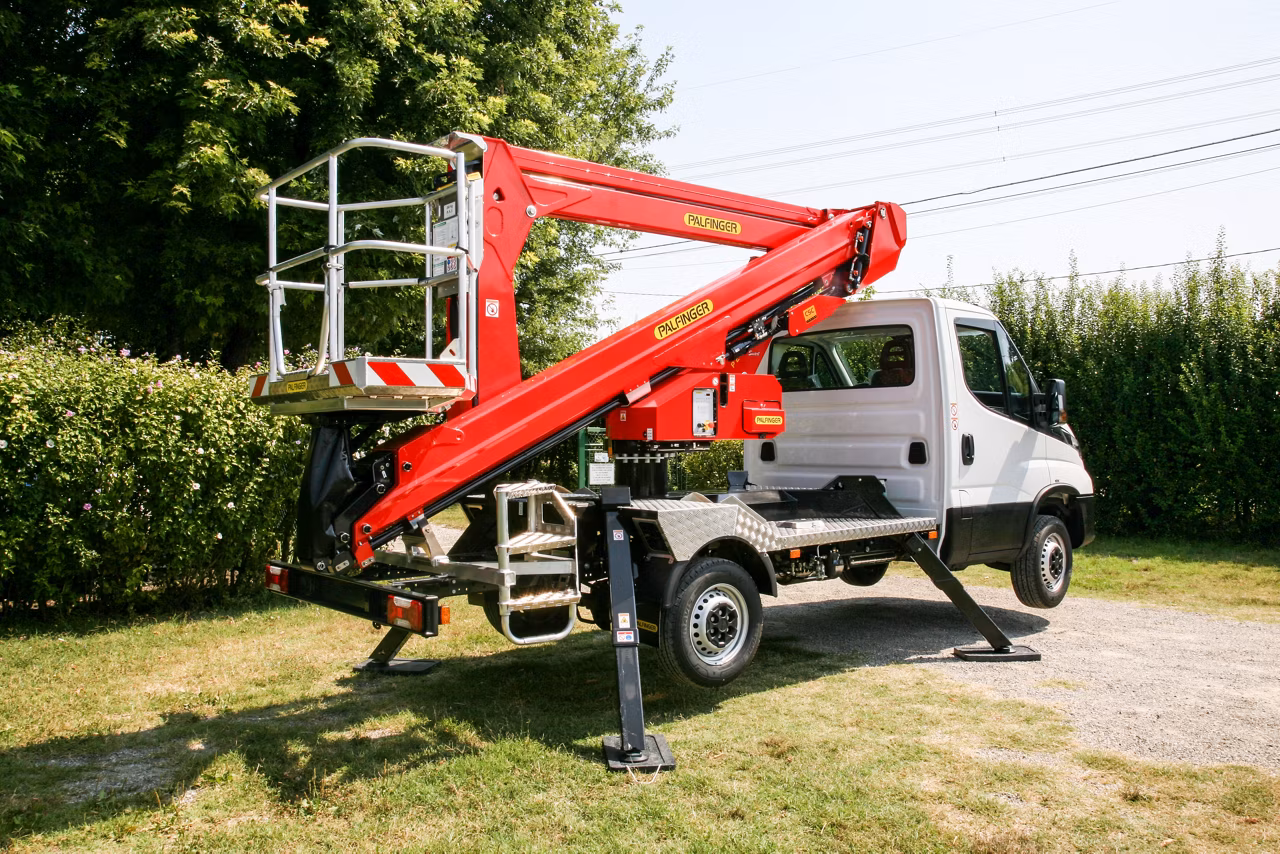

The PALFINGER P 240 A-E is a compact, double-articulated aerial work platform in the 21–29 m category, mounted on a 3.5 t chassis, featuring a pantograph stabilizer design. The interlocking X-mechanism ensures even weight distribution and stable vertical operation even on rough, off-road terrain, while also reducing load on the front axle. Electric multifunction controls with a twin current collector unit enable smooth and precise maneuvering, and a 28-inch color display in the basket improves operator visibility during work. The standard Connected module enables remote diagnostics and fleet management. Chassis: Iveco Daily (3.5 t), further chassis on request. Working height: 22.9 m, side reach: 11.6 m, basket load: 250 kg, turntable rotation: 290°, transport height: 2.93 m, overall length: 6.4 m.
One Button Folding
- Fold the aerial work platform quickly and easily with the PALFINGER Home function
Perfect Protection
- The KTL coating provides optimal, long-lasting surface protection with excellent corrosion resistance for the whole life of a platform, maintaining performance and helping to retain value
Specifications of modifications for Auto hydraulic lift Palfinger P 240 A-E
-
Working Height
22,9 m -
Basket Load
250 kg -
Side Reach
11,6 m -
Workman basket - breadth / length / height
1,4 х 0,84 х 1,1 -
Angle of main boom
-25° - +73° -
Rotation angle of turntable
290° -
Height in transport position
2,93 m -
Width in transport position
2,19 m -
Overall length
6,4 m
