P 280 CK eDRIVE

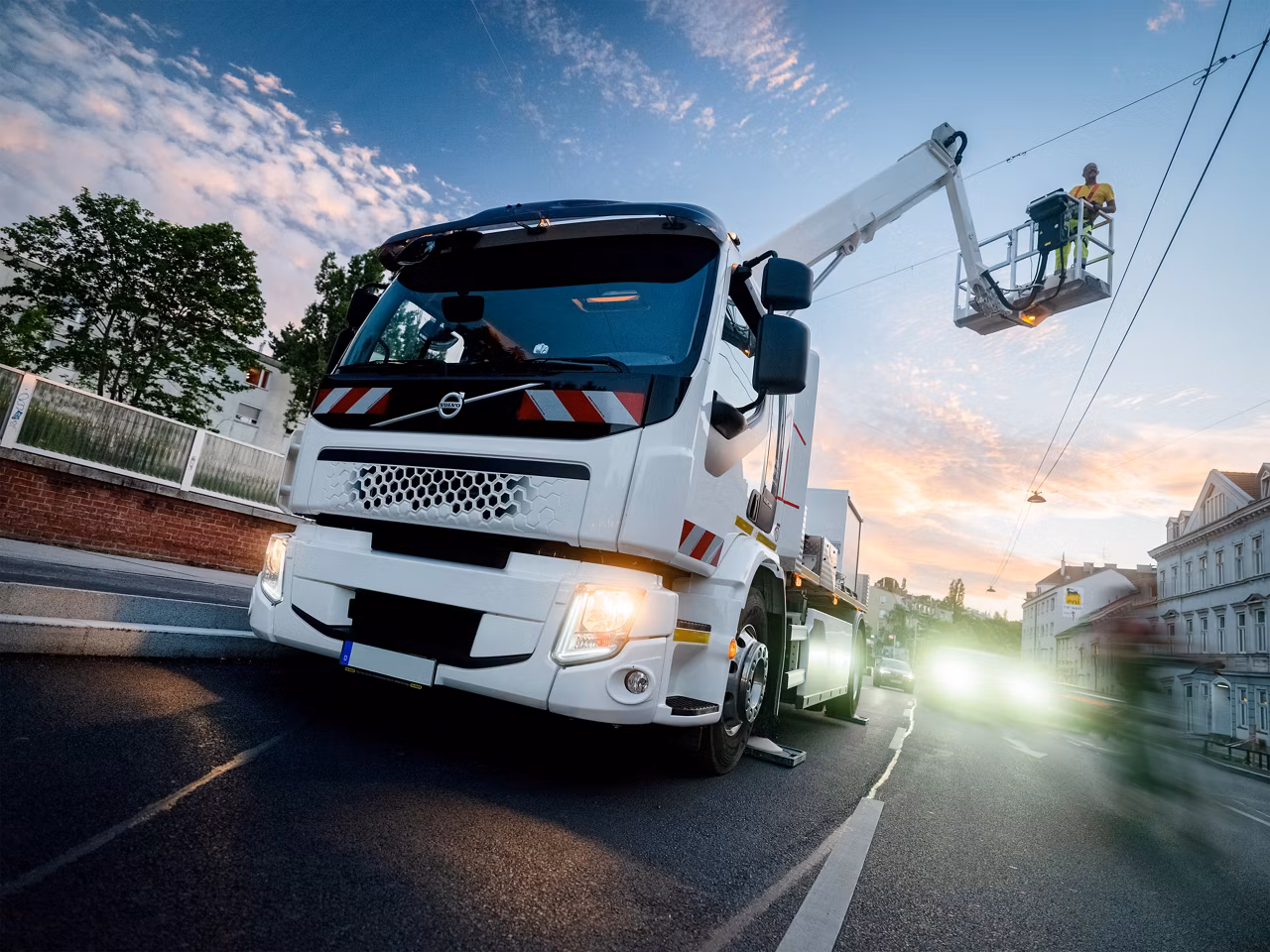

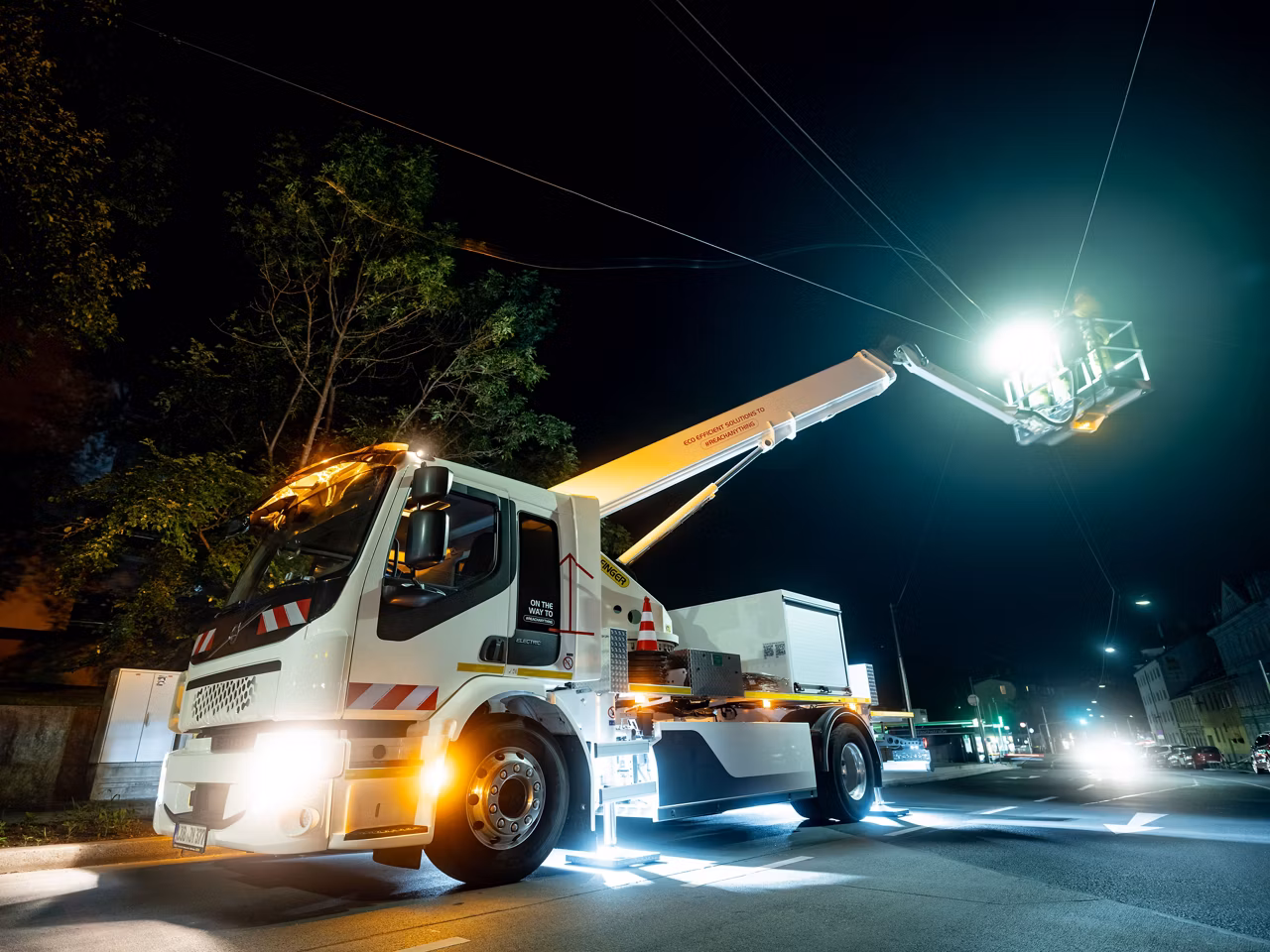

Auto hydraulic lift Palfinger P 280 CK eDRIVE
The PALFINGER P 280 CK eDRIVE is a fully electric aerial work platform in the 21–29 m category and winner of the IAPA 2024 Product of the Year award in the Vehicle/Trailer-Mounted category. The fully electric drive ensures quiet, low-emission operation — ideal for night work in urban areas, near hospitals, and in zones with strict noise and emission restrictions where conventional platforms may not be permitted. The standard Connected module enables remote diagnostics and a constant fleet overview. Available exclusively on the Volvo FE Electric chassis. Working height: 28 m, side reach: 18.8 m, basket load: 300 kg, turntable rotation: 500°.
One Button Folding
- Fold the aerial work platform quickly and easily with the PALFINGER Home function
Perfect Protection
- The KTL coating provides optimal, long-lasting surface protection with excellent corrosion resistance for the whole life of a platform, maintaining performance and helping to retain value
Efficient Memory Function
- Store preferred working positions with the PALFINGER Memory function. With efficient, one-button operation, operators can switch from transport position to working position with ease
Specifications of modifications for Auto hydraulic lift Palfinger P 280 CK eDRIVE
-
Working Height
28 m -
Basket Load
300 kg -
Side Reach
18,80 m -
Slewing range of basket
+/- 90° -
Max. stabilizer spread
2,51 m -
Operating angle of working arm
185° -
Max. basket load
300 kg -
Workman basket - breadth / length / height
1,4 x 0,7 x 1,1 m -
Rotation angle of turntable
500° -
Height in transport position
3,4 m -
Width in transport position
2,51 m -
Overall length
8,2 m
