MBB C 2500 L
MBB C 2500 L Cantilever Tail Lift
Enhanced safety for operators, cargo and vehicle

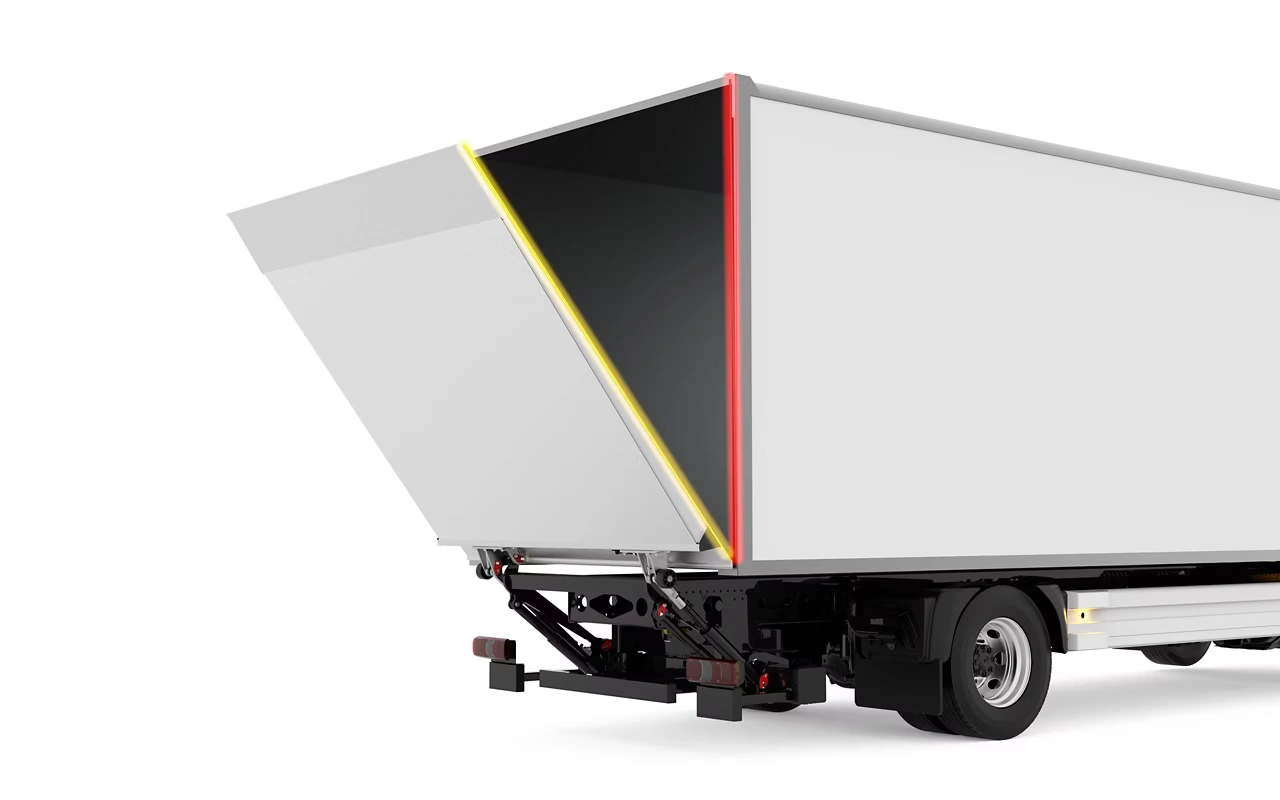

With our tail lifts, your drivers, vehicles and cargo are always safely on the move. A wide range of smart safety options ensures maximum protection in daily operation. MBB SafeVis improves visibility in low-light conditions with steady or flashing light, while MBB SafeClose provides intelligent obstruction detection. Additional features such as railings and load-safety options ensure secure handling and smooth, reliable workflows every day.
Premium operating units for smarter and safer operation

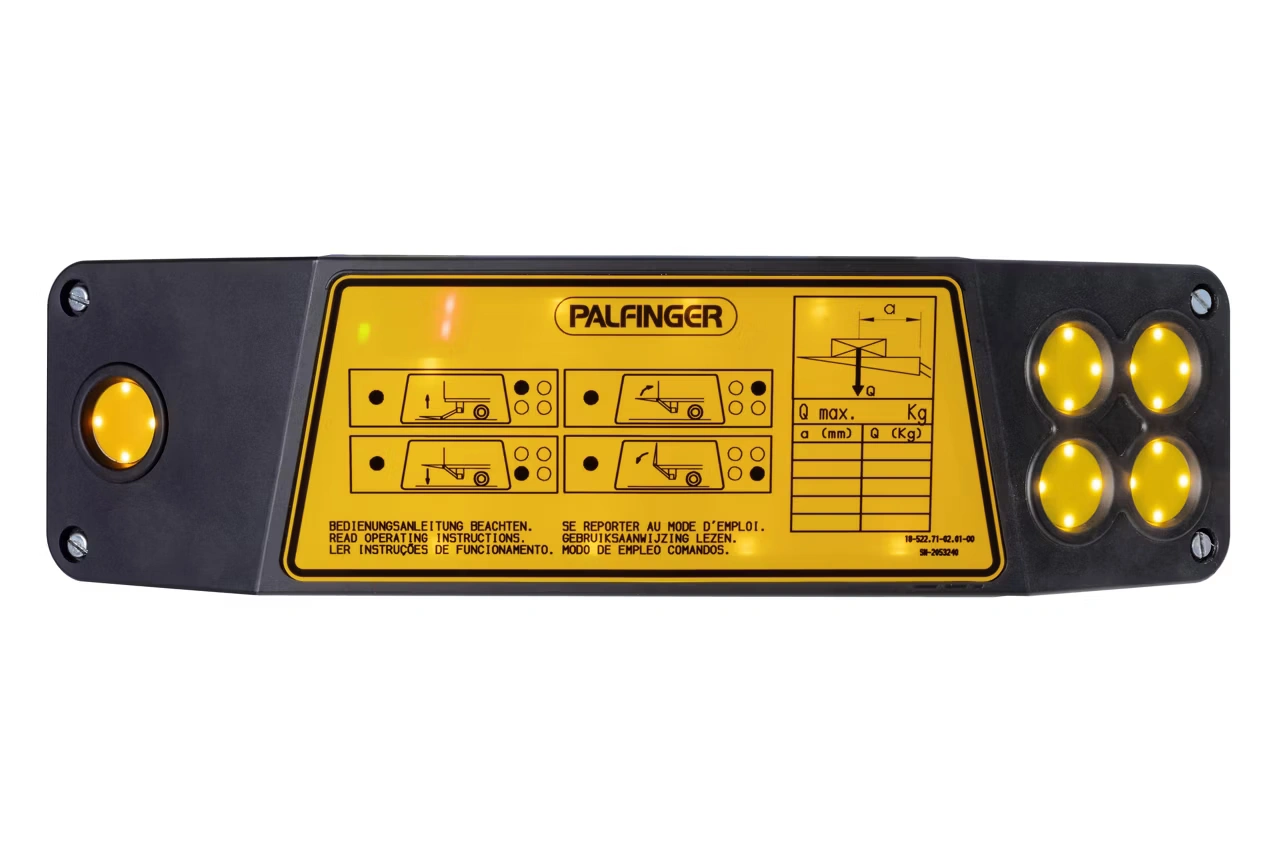

Our tail lifts offer a range of intuitive operating options tailored to everyday use. The Slim Control Panel Premium sets a new standard with its robust, waterproof and shock-resistant design — and its double 7-segment LED display provides instant status and voltage information for quicker diagnostics and safer operation.
Specifications of modifications on MBB C 2500 L Cantilever Tail Lift
-
Lifting capacity
2,500 kg -
Main beam
180 mm x 180 mm -
Lifting gear hydraulics
2 lifting cylinders / 2 tilting cylinders -
Platform overlap with floor
- 63 mm -
Lifting arm pitch
1300 mm -
Load centre, longitudinal
750 mm -
Load centre, across centre
Central, 50% of rated load on one side -
Inclination angle of the platform
+90° to -10°
