MBB PTC 1000 LLW Cantilever Tail Lift

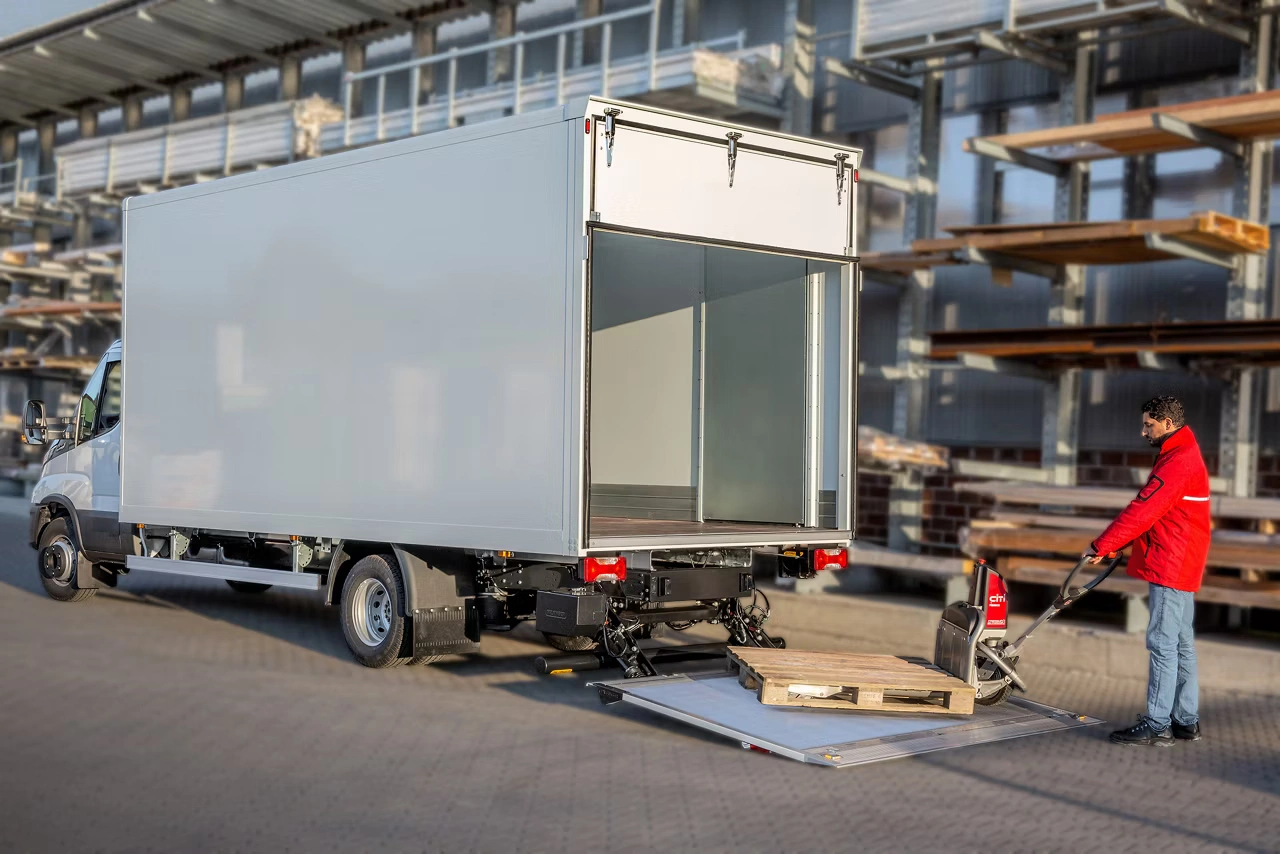

Lightest 1,000-kg tail lift on the market

As the lightest tail lift in the entire 1,000-kg class, the MBB PTC 1000 LLW maximises payload capacity and efficiency. Its robust four-cylinder lifting mechanism ensures outstanding stability and reliability, particularly in the 5 – 7.99 t segment. Designed for last-mile operations, its lightweight construction helps reduce fuel consumption and CO₂ emissions, while the straightforward installation minimises mounting time and costs.

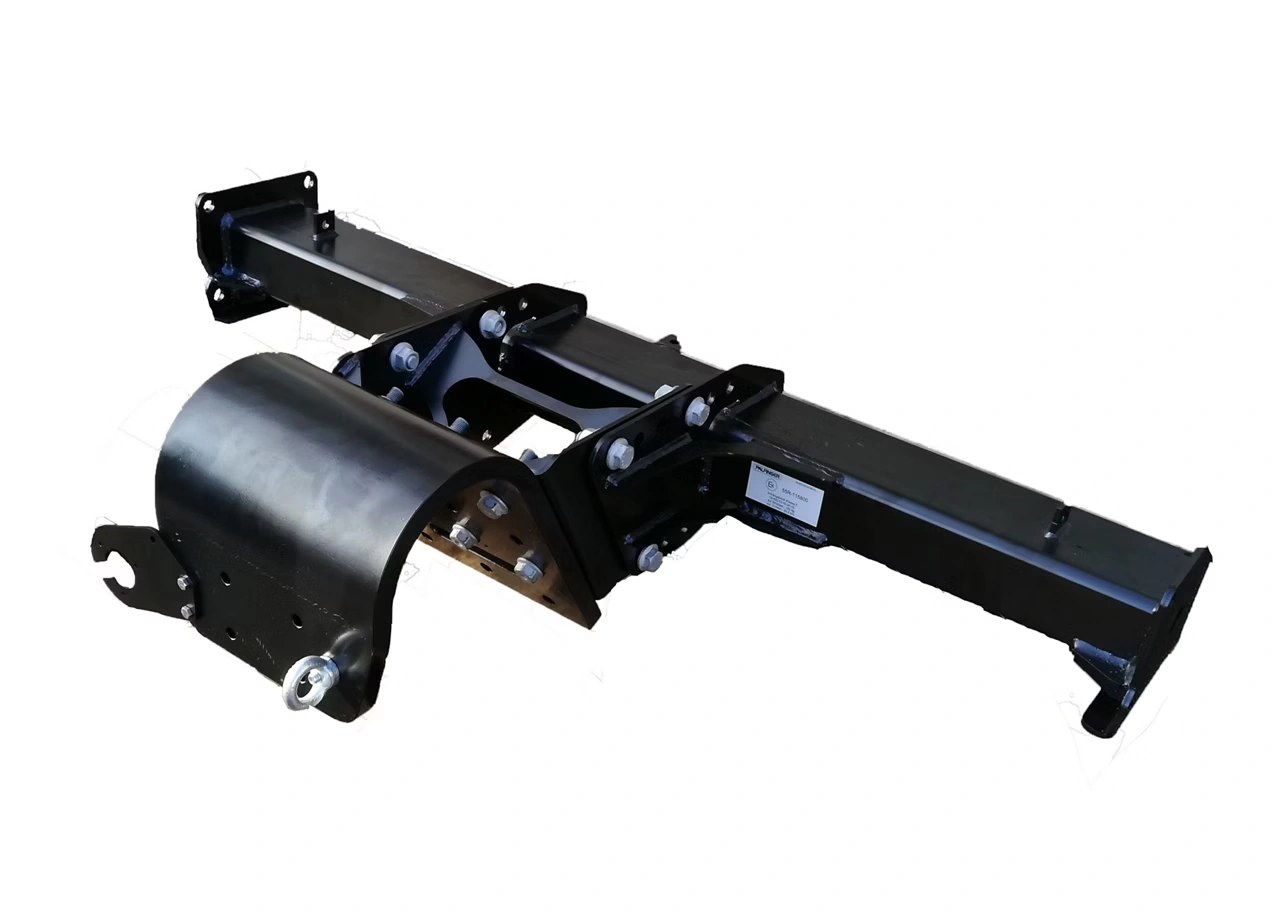

More flexibility with retrofittable ball-head coupling

An optional mounting for a ball-head coupling is available and features swan-neck technology for optimum stability. With a reference value of 51.5 kg and a D-value of 23.5 kN, it provides a robust solution for trailer operation when required.

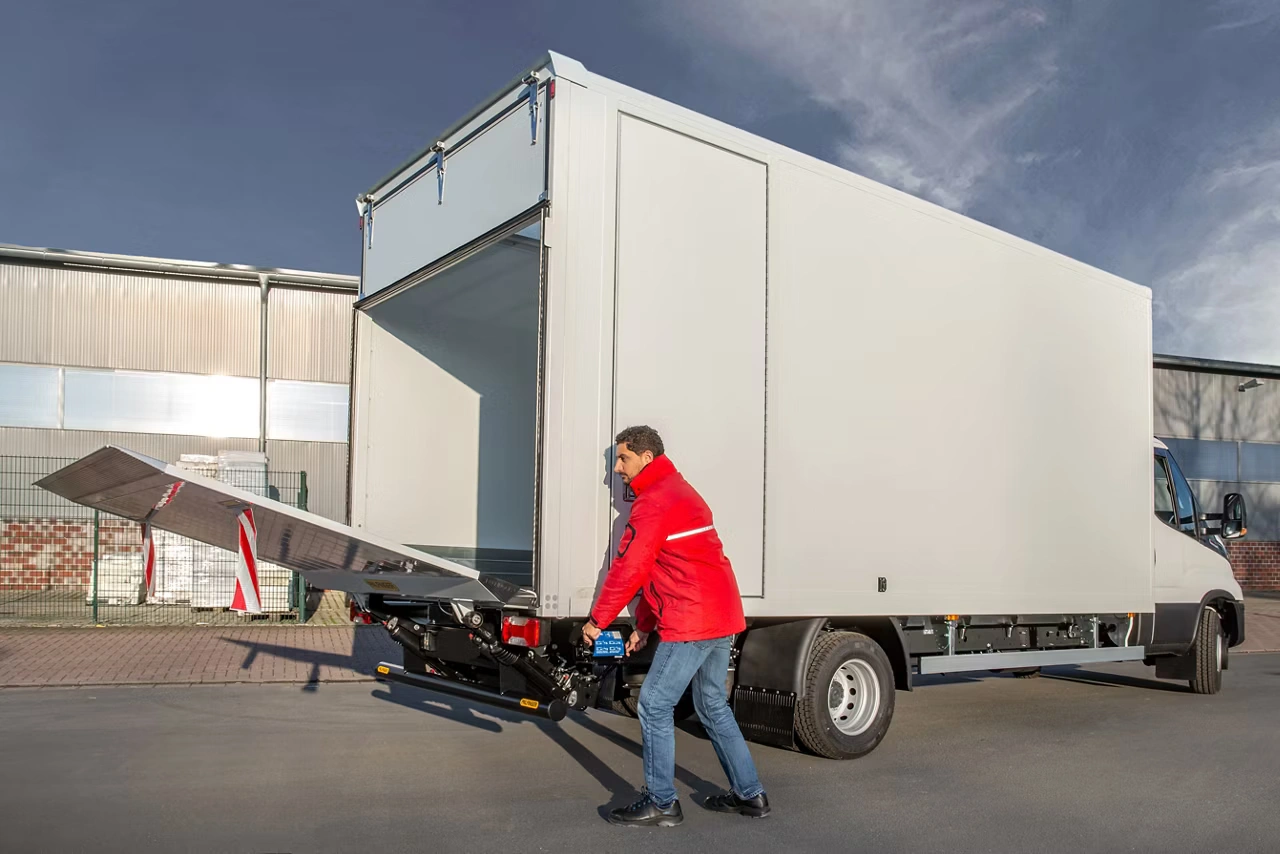

Easy and efficient installation

Universal mounting brackets allow the tail lift to be installed quickly and easily on a wide range of vehicle types – reducing installation time and effort. For the VW Crafter, MAN TGE, and Mercedes-Benz Sprinter, vehicle-specific mounting brackets are available to ensure a perfectly matched fit.

Discover Standard Features

Robust lifting mechanism for precise movements

The durable lifting mechanism with two lifting and two tilting cylinders, a one-part underrun protection device, and Q8 Heller T15 hydraulic oil ensures stable and precise platform movements during lifting and lowering. All steel components are KTL-coated as standard for optimal corrosion protection. An additional powder coating is available as an option, further increasing the tail lift’s durability and resistance – ensuring long-lasting, reliable performance in daily operation.

Lightweight aluminium platform for daily use

The AluLite 30 aluminium platform combines high stability with low weight. Its slip-resistant standard surface with simple cross-milling (R10) ensures secure grip during loading and unloading. Standard equipment includes warning lights and warning flags – ensuring safe and convenient operation in daily distribution logistics.

Comfortable operation as standard

The tail lift is equipped as standard with the Slim Control Panel in the Basic version. The flat, robust control panel enables intuitive and safe operation of the lift. Thanks to its ergonomic button layout and flexible installation options, it ensures a high level of operating comfort and efficient workflows in daily use.

Reliable control with MBB Control

MBB Control is the central control unit of the tail lift, connecting all key components for precise and responsive movement sequences. The processor-based control system enables individual software adjustments for various vehicle and application requirements. Integrated diagnostic functions support quick error analysis and ensure maximum reliability in daily operation.

Optional Features
